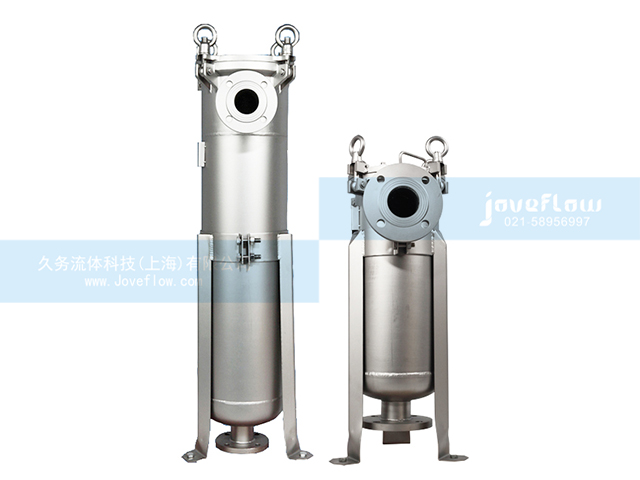

Single bag filter SBF

Single bag filter SBF

product introduce:With filter bags as the filter element is capable of liquid precision filtration it can remove the tiny impurities from liquid.

DetailsRangeOrder


With filter bags as the filter element, is capable of liquid precision filtration, it can remove the tiny impurities from liquid. Compared to cartridge filter, it has advantages of high flowrate, convenient operation and economical filter media consumption, especially capable of viscous liquid filtration. SBF filter has a variety of highperformance filter bags developed by JOVEFLOW, it can meet the most filtering requirements.

Working Principle

Process liquid enters filter housing from the inlet into the filter bag, particles larger than the filtration pore are blocked on the surface or inside the filter bag. Liquid pass across and goes to outlet. When the particles accumulated and increase the pressure drop to 0.05-0.1MPa, replace the clogged bag and continue filtering.

TYPE

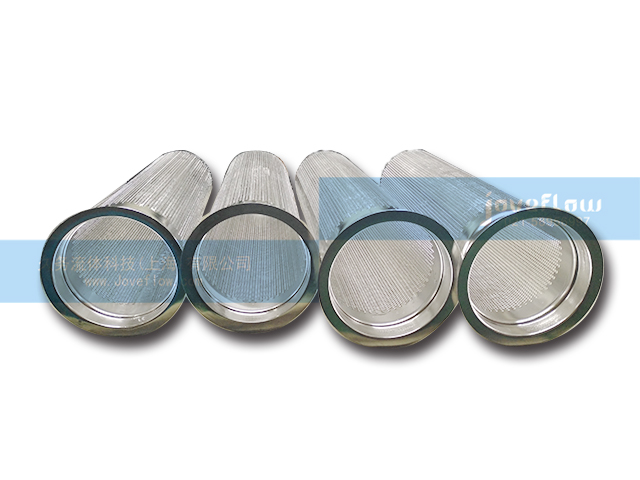

Supporting Basket

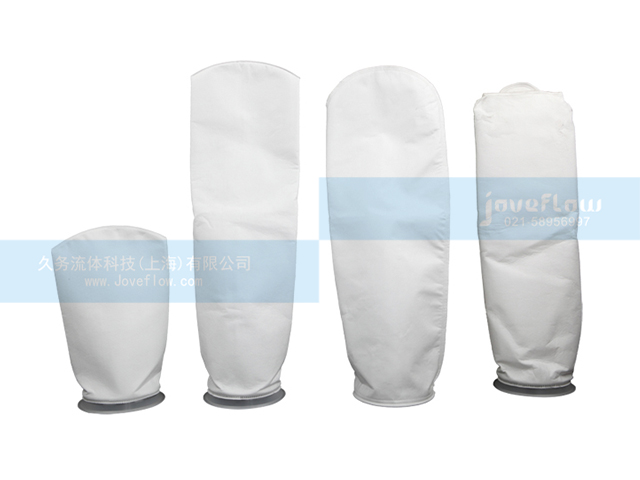

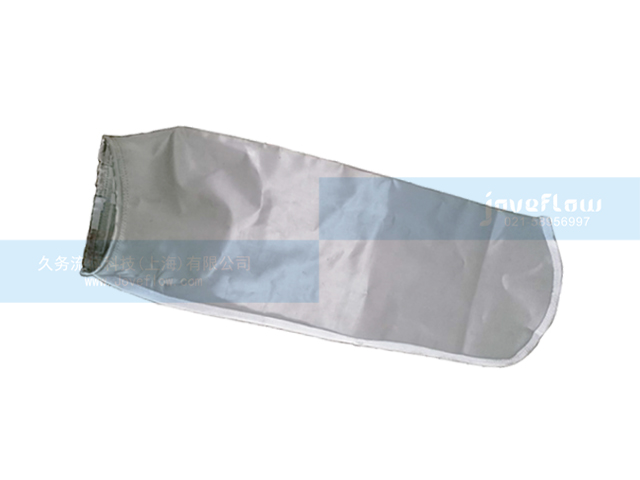

Filter Bag

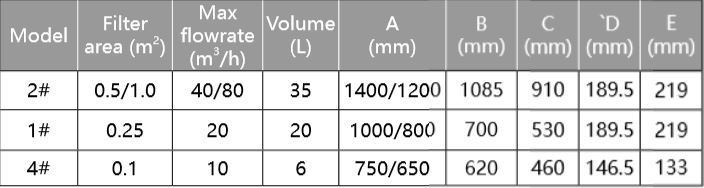

Main Specification


■ Housing Material: 304,316L,CS
■ Supporting basket Material:SS304/SS316L
■ Flowrate (m3/h): 1-40
■ Filtration rating (μm): 0.5-1000
■ Applicable Viscosity (cp): 1-20000
■ Design pressure (MPa): 0.6, 1.0
■ Filter Area (m2): 0.1-0.5
■Movable filter worktable:  A movable platform on which filters could be placed and moved to different locations.

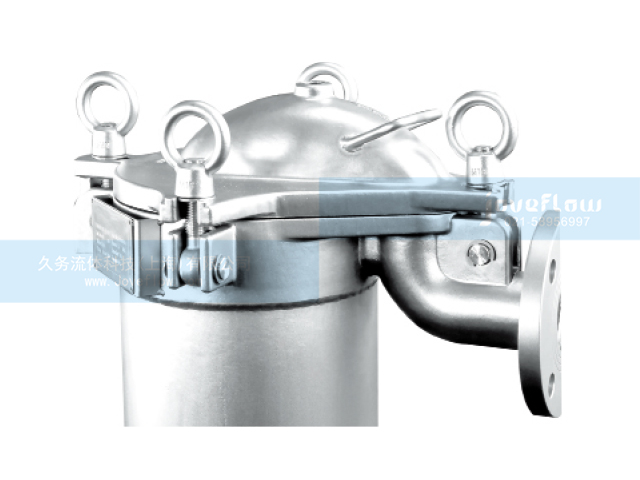

Others Lid


 Mobile filtering system



Relevant

  • Applicable Industries and Liquid
    ■ Applicable industries: Fine chemicals, water treatment systems, plup and paper, automobile manufacturing, petro-chemical, machining, coatings, electronics etc.
    ■ Applicable liquids: Wide applicability, all liquids contained micro-impurities.
    ■ Filtration function: Remove all sizes of particles, purify liquids, protection of critical equipment.
    ■ Filtration type: One-time intercept filtering, the filter bag need to be replaced manually regularly.
